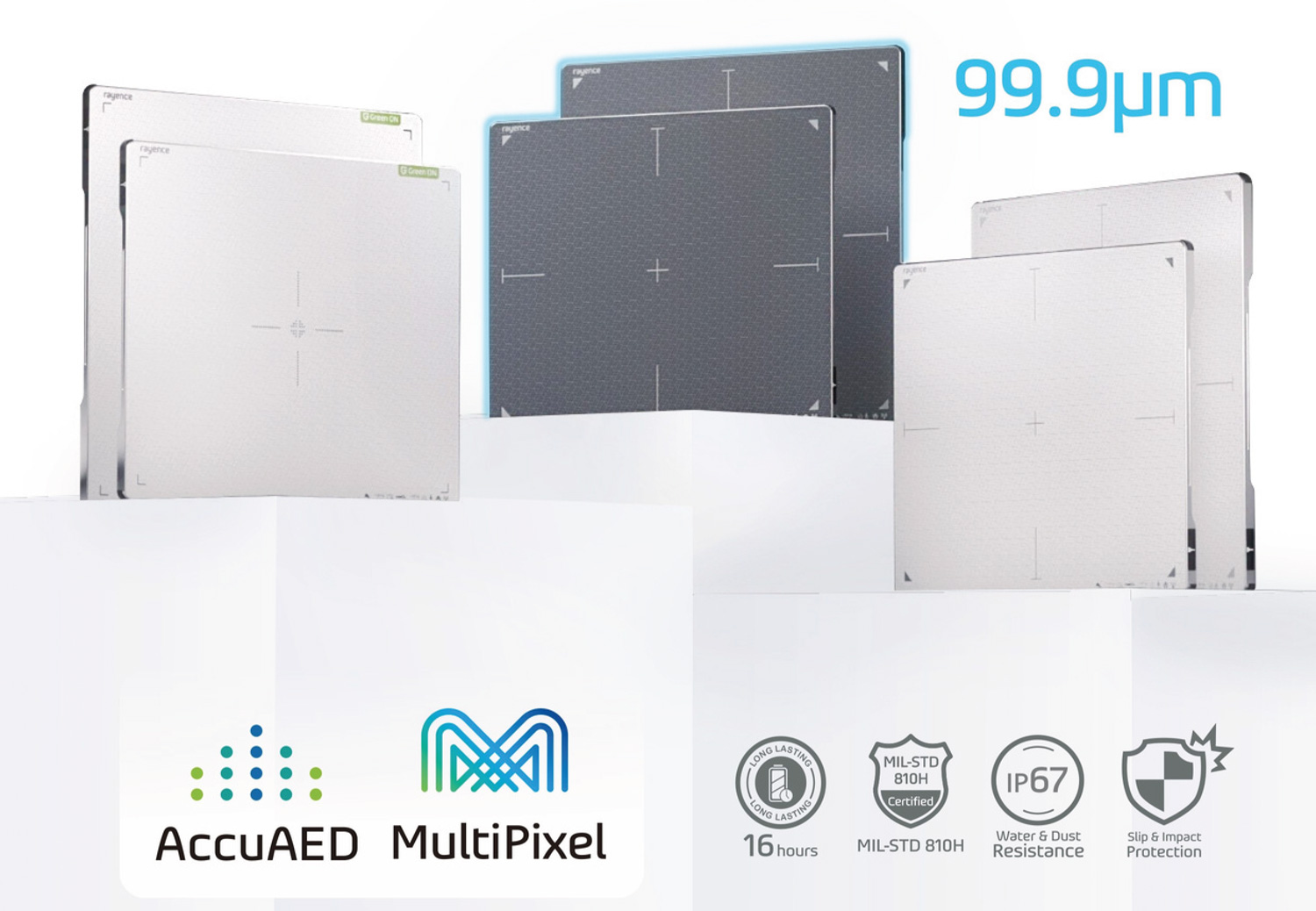

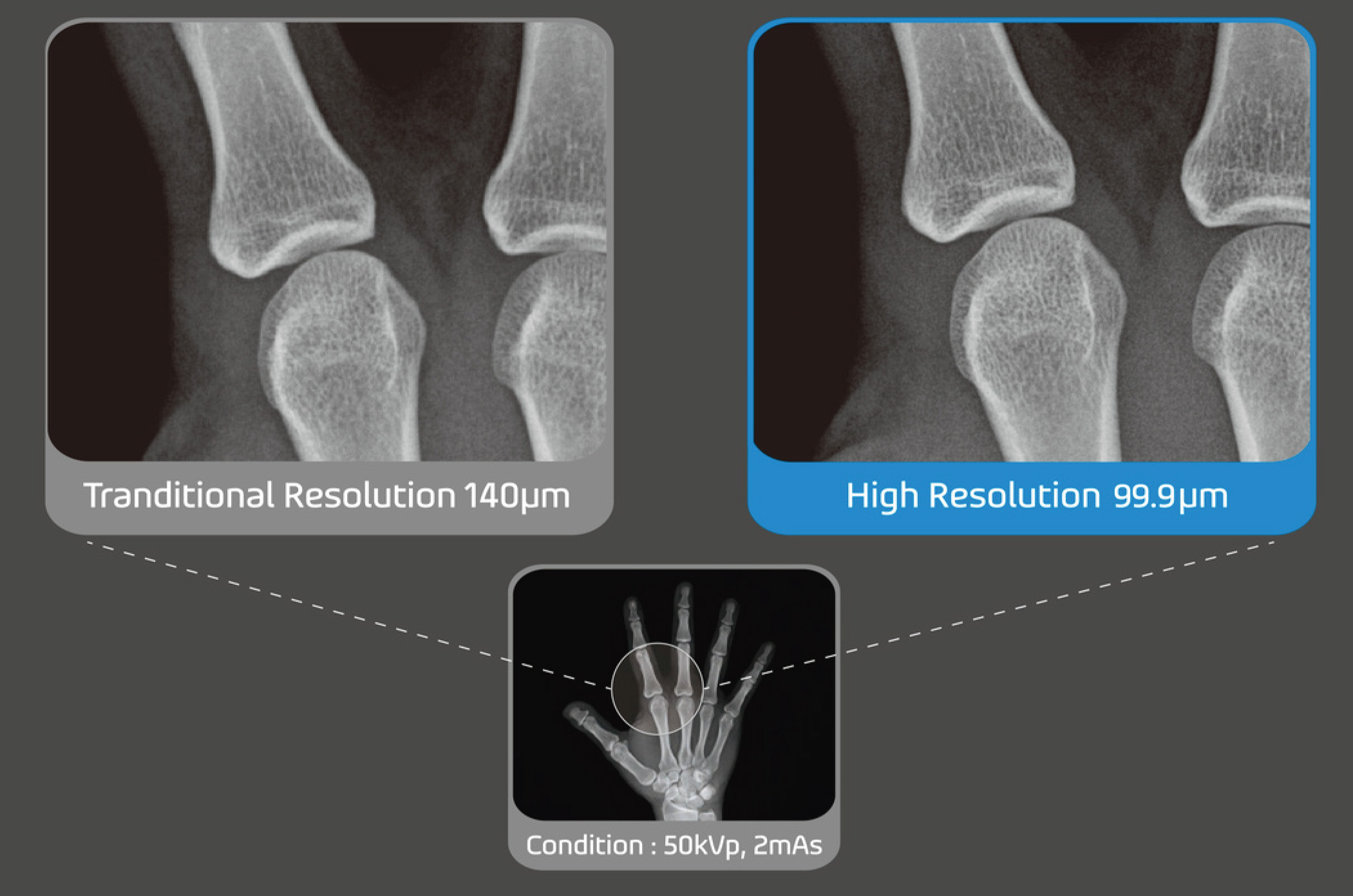

High Resolution 99.9um
When you diagnose details such as fractures, you need a high-resolution image consisting of small pixels. 1417 – 1717 WCE series also provide high-quality diagnostic images by fine pixel pitch 99.9um.

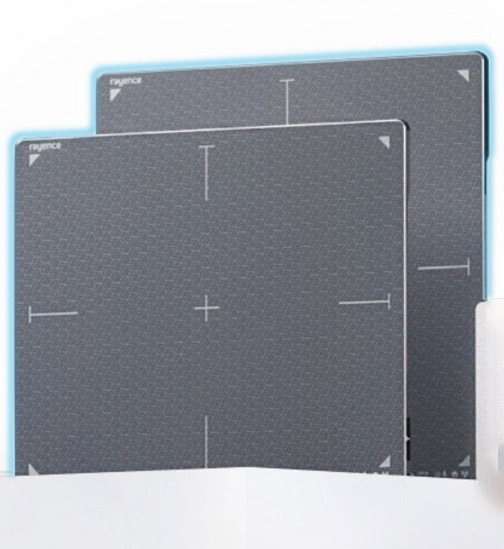

Brand New 17/17iva/14/17iva

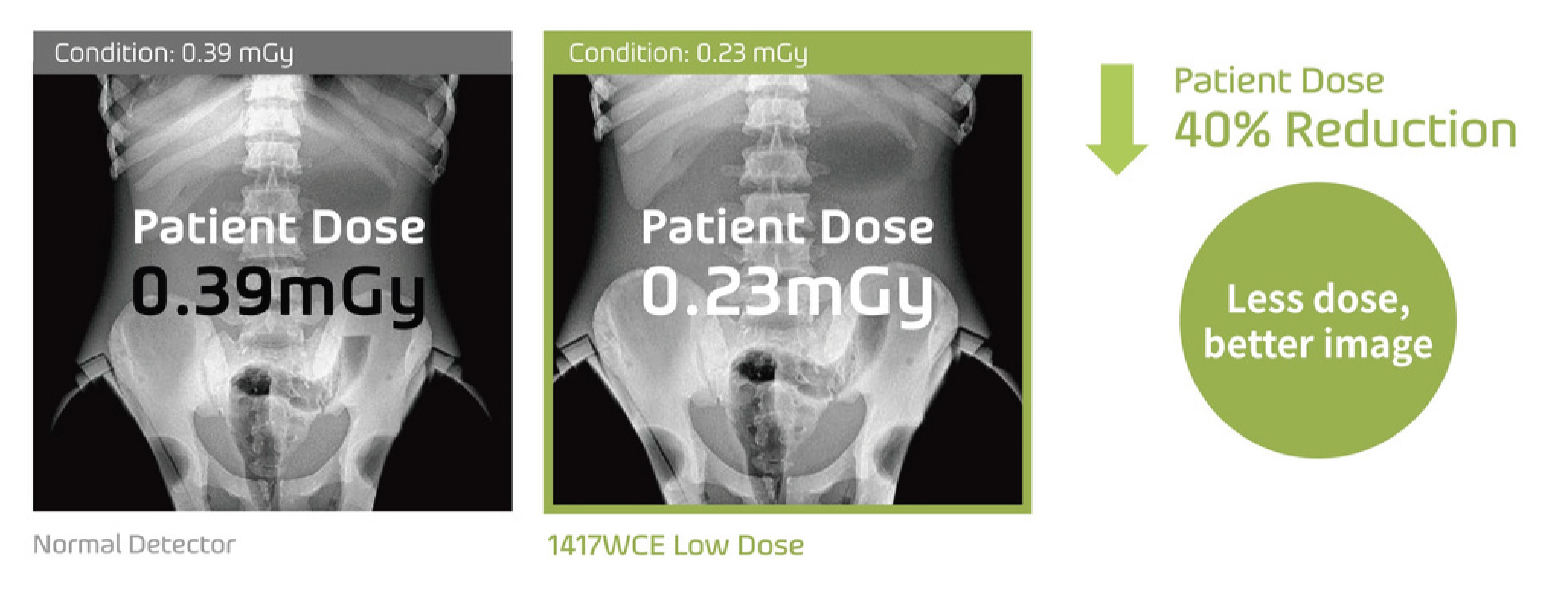

Low Dose
Manufactured by a Leading South Korean Manufacturer Imported and Marketed in India by IVANNKA offers the same level of image quality at 40% lower doses than conventional products. The reading accuracy of medical staff is enhanced while the patients’ exposure to the radiation is reduced.

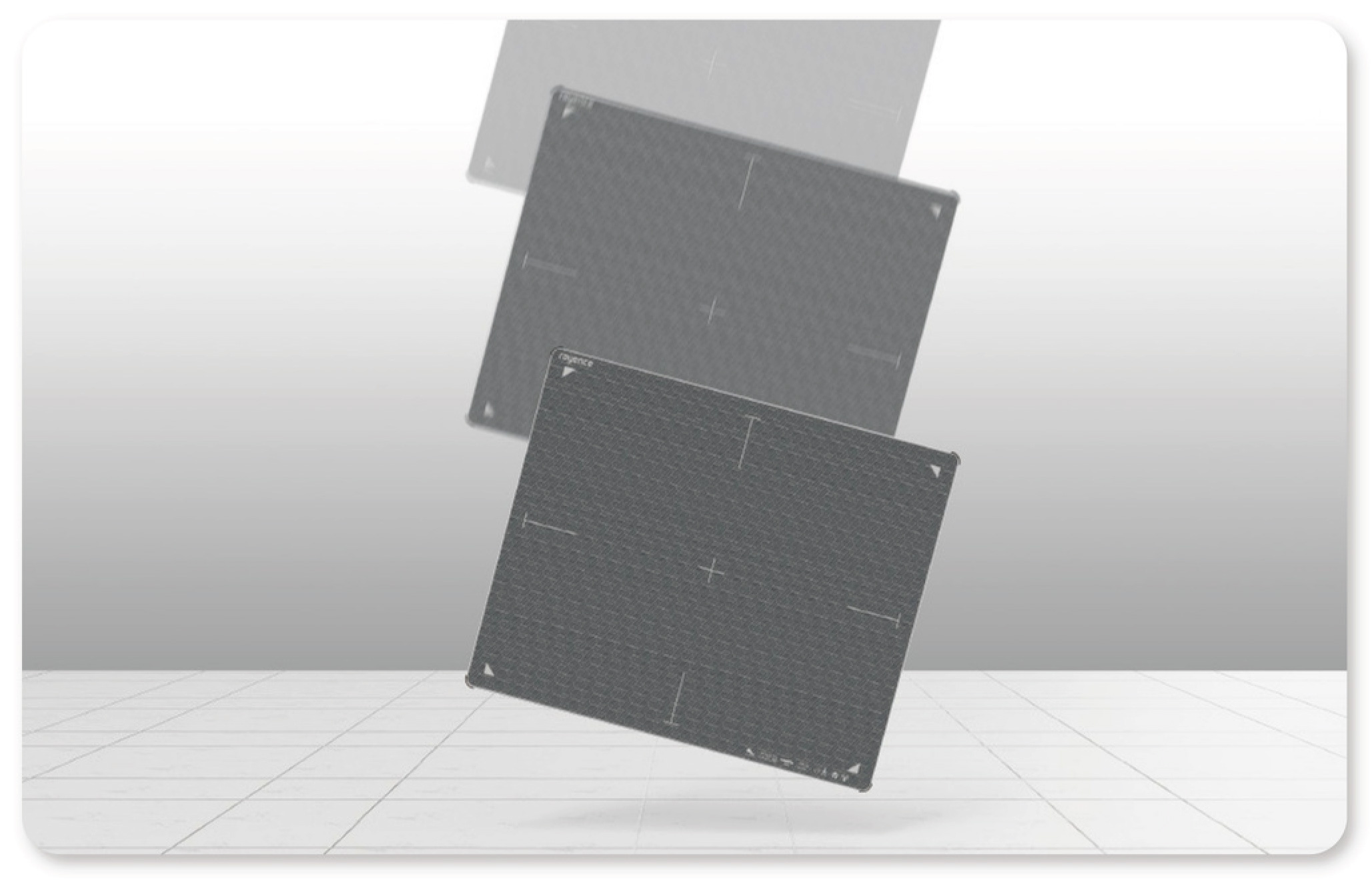

For Durability
Glass-free detectors are designed to be light weight by replacing the glass panel with non-glass flexible panel. It relieves users’ fatigue through weight reduction and provide higher durability, even in the occurance of accidental drops and bumps.
ACCUAED
Meet the next generation of X-ray automatic exposure detection with our AcuDetect technology. Our state-of-the-art silicon-based sensors are designed to detect individual photons, ensuring accurate and dependable identification of X-rays that have been exposed. Detectors equipped with AcuDetect reliably recognize X-ray at low dose, even for patients weighing nearly 140kg.
MultiPixel
Until now, We had to choose between 140pm and 100pm digital X-ray detectors depending on the specific application and requirements of the site. However with the new MultiPixel technology, you can take advantage of both pixel pitches by switching modes on demand!

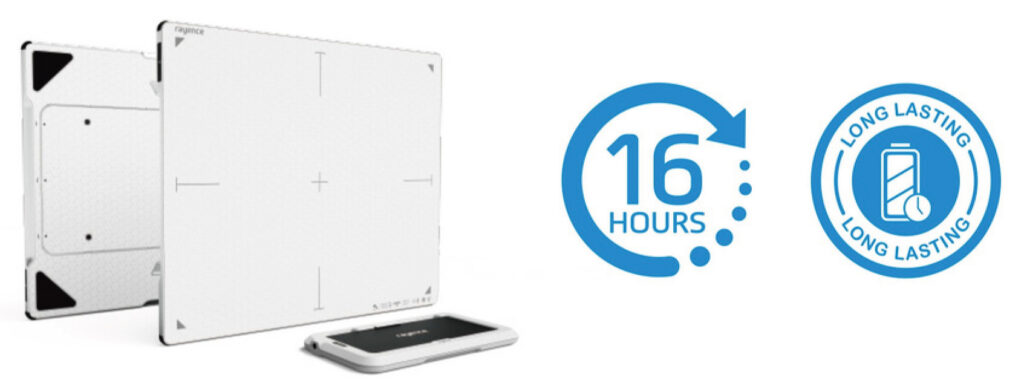

16 Hours Battery Life
Best in class 16 hour dual batteries offer the convenience of hot-swapping for uninterrupted usage. 10minutes charging from 0% provides a substantial 40 minutes of operational time.
| 17/17iVA | Original | High Sensitivity | High Resolution |
|---|---|---|---|
| Sensor Type | a-Si TFT | ||
| Scintillator Type | CsI: Tl | ||
| Pixel Pitch | 140 μm | 140 μm | 99.9 μm |
| AcuDetect | O | O | O |
| MultiPixel | X | X | O |
| Glass Free | X | X | X |
| Battery Operating Time (hrs) | Lithium Ion 3920mAh × 216hr (1 battery 8hr) | ||
| Weight (kg) [not incl. battery] | ≤ 2.5 | ≤ 2.5 | ≤ 2.5 |
| Total Pixel Matrix (pixels) | 2500 × 3052 | 2500 × 3052 | 3534 × 4302 |
| Dimensions (mm) | 384 × 460 × 15 | 384 × 460 × 15 | 384 × 460 × 15 |
| A/D Conversion (bits) | 16 | 16 | 16 |
| Data Interface | Wired: GigE / Wireless: 802.11 n/ac | ||
| Energy Range (kVp) | 40 ~ 150 kVp | ||
| 14/17iVA | Original | High Sensitivity | High Resolution |
|---|---|---|---|
| Sensor Type | a-Si TFT | ||
| Scintillator Type | CsI: Tl | ||
| Pixel Pitch | 140μm | 140μm | 99.9μm |
| AcuDetect | O | O | O |
| MultiPixel | X | X | O |
| Glass Free | X | X | X |
| Battery Operating Time (hrs) | Lithium Ion 3920mAh x 216hr (1 battery 8hr) | ||
| Weight (kg) [not incl. battery] | ≤ 3.3 | ≤ 3.4 | ≤ 3.2 |
| Total Pixel Matrix (pixels) | 3072 × 3072 | 3072 × 3072 | 4302 × 4302 |
| Dimensions (mm) | 460 × 460 × 15 | 460 × 460 × 15 | 460 × 460 × 15 |
| A/D Conversion (bits) | 16 | 16 | 16 |
| Data Interface | Wired: GigE / Wireless: 802.11 n/ac | ||
| Energy Range (kVp) | 40 ~ 150 kVp | ||
