About Dentech 32
Dentech 32 is designed on the principal of X-ray drum curative tomography, It comes equipped with micro controller. It’s fully automatic special purpose orthopantomography x-ray unit with Cephalometric attachment it provides with a “Soft Touch” key and remote for easy operator and safety operator.
Dentech-32 has small focus X-ray tube, which increase the resolution of X-ray. The unit can rediograph a complete curvature view of the whole teeth in a picture. The picture includes sinunes, nasal sinus, maxillary, mandibular structure and whole 32 teeth temporal, lower jay joint and its combined relations.
The unit takes only 15s for a rotational radiography to complete a panoramic view of the whole Dental-Maxilla-Facial region.
It’s a noice elevating mechanism through actuator to up and down machine gently for radiography of people of different heights. It can also be used for oral surgery and facial orthopaedics.

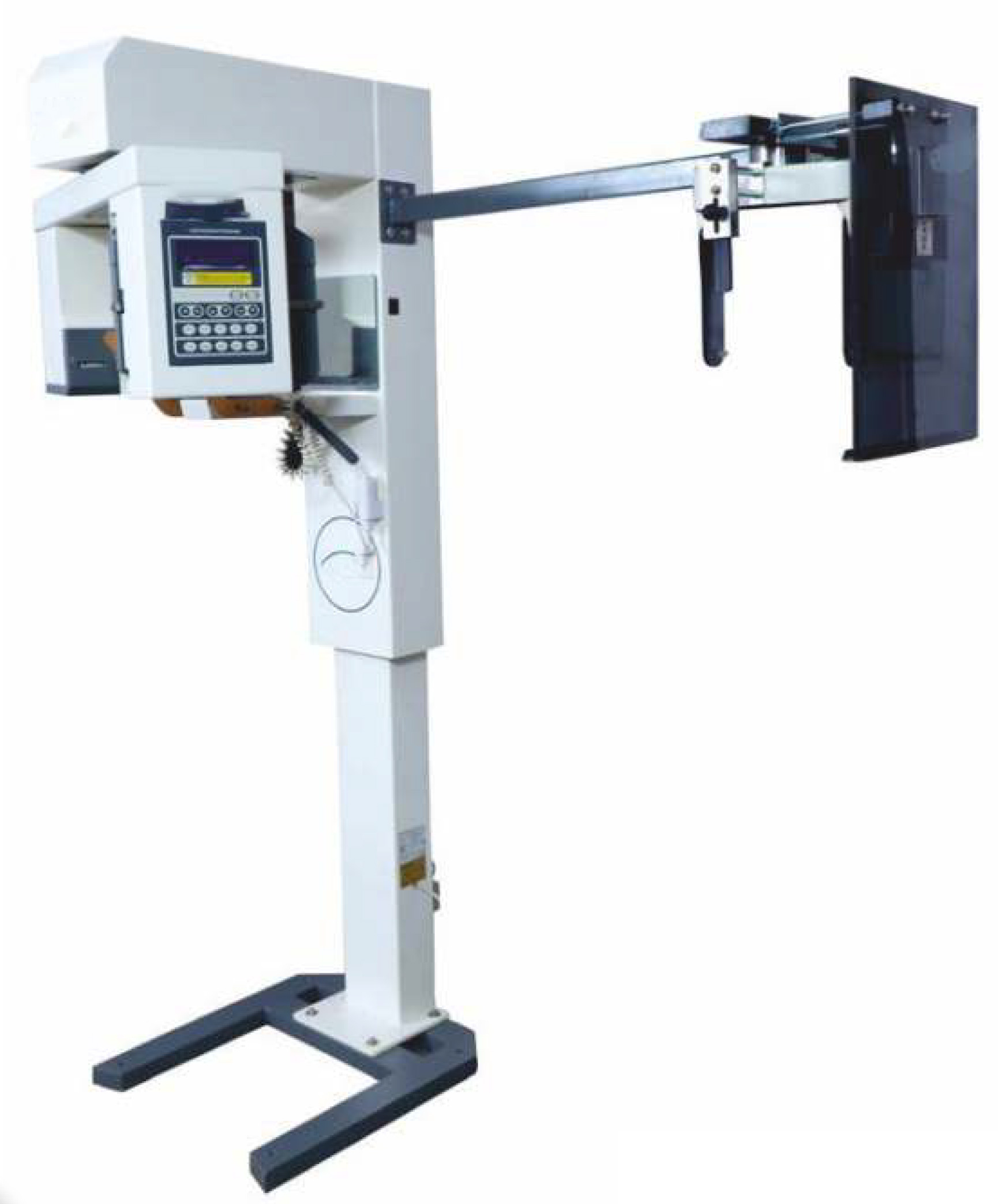

Product Image

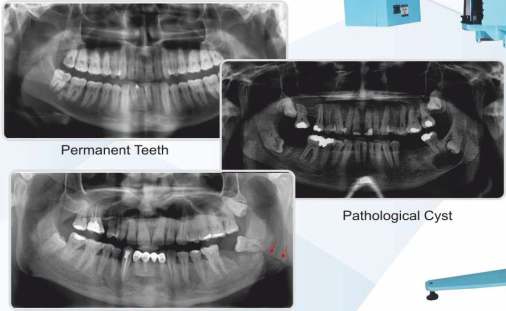

Standard Panoramic X-Ray both for Adult & Children
Paranomic radiography, also called panormic X-ray is a two-dimentional (Z-D) dental X-Ray examination that captures the entire mouth in a single image, including the teeth upper and lower jaws, surrounding structures and tissue that cannot be seen with a simple oral exam. Such as permanent teeth, pathological cyst & Fracture jaws.
Half Panoramic X-ray both L & R
Dentech-32 has an innovated feature of taking half panoramic dental X-ray for left & right.
Temporomadibular Joints (TMJs)
Pain or dysfunction of the temporo mandibular joints is commonly referred to as “TMJ”, when in fact, TMJ is really the name of the joint and temporomandibular joint disorder (or dysfunction) is abbreviated TMD. This term is used to refer to a group of problems involving the TMJs and the muscles, tendons, ligaments, blood vessels, and other tissues associated with them. Some practitioners might include the neck, the back and even the whole body in describing problems with the TMJs.
Cephalogram AP/Lateral View
Cephalogram, also called cephalometric, is an X-ray image of the structures of the head. It can also mean a radiograph of the head, including the mandible, in full lateral view, that issued for making cranical measurements.
Product Range
Ortho Pantomo Graph (OPT)
Mammography
X-ray Machine
Features
- Fully automatic mode operation
- Aesthetic look and compact design
- Soft press key (soft press control pad for simpler and faster operations.
- Three positioning laser beams to ensure precise position.
- Head auxiliary fixing device for ensuring patients head stable.
- Dual speed verticle movement for adjusting scan frame smoothly.
- Convex positioning mirror ensuring operator to position patient’s face accurately and quickly.
- Four Modes: PAN, HALF PAN L, HALF PAN R, TJM (TJM1 TJM2).
- CEPH with different patient size, infant, Small, Medium, Large.
- Low investment, lower running cost, more profits
- Double stage voltage regulation.
- Automatic exposure termination at end of travel.
- Test mode without exposure.
- Automatic audible and visible error alarm.
- No installation hazards.
- Quick after-sales service with ready availability of spares.
- 0.4mm focus dedicated OPG X-ray tube.
- Full wave rectification.
Technical Specifications
| System Operation | Fully Automatic |
| Power Voltage | 230V/50Hz |
| Nominal Power | 630 Watt |
| Max. Line Current | 5 AMP |
| Max. Power | 1100 Watt |
| Column Height | 150-220 CM |
| Vertical Movement | Motorized |
| OPG Tube | Imported |
| Tube Current | 15 mA |
| Tube Voltage | 55 Kvp to 85 Kvp (in Kvp steps) |
| Tube Focal Spot | 0.4 mm sq. Fine Focus |
| Total Filtration | 2.5 Aluminium |
| Exposure Time | PAN 15 SECOND / TMJ 4×4 SECOND |
| Film Size | OPG & TMJ - 6" × 12" and 10" × 12", Ceph - 8" × 10" and 10" × 12" |
| Cassette Size | OPG & TMJ - 6" × 12" and 10" × 12", Ceph - 8" × 10" and 10" × 12" |
| Cassette Type | Flat (Analog / Digital) |
| Safety | Automatic Exposure Termination |
| Safety Feature | Automatic Audible and Visible Error Alarm |
| Patient Position | LED Centre Light |
| Centering Reference | Chin Rest with Bite Wing |
| Cephalogram | AP / LAT / Oblique View |
| Remote | Light Weight, Easy Operation for Exposure, Test Run, Reset & Centre Light |
| Console | Microcontroller Based, Soft Touch Panel, 4 Line LCD Display |
| Voltage Regulation | Double Stage CVT Regulation |
| Generator | Two Pulse Generator |
| Rectification | Full Wave Rectified |
| Magnification | OPG - 1.2 | CEPH - 1.1 |
| Positioning Mirror | Convex Mirror |
| Unit Dimensions | With Ceph - 230 × 190 × 90 cm, Without Ceph - 230 × 90 × 90 cm |
| Weight | 185 Kg |
