High-uniformity illuminated radiograph viewing panels for accurate conventional film reading in clinical settings. Manufactured at our Noida facility, our view boxes deliver consistent luminance output to ensure reliable diagnostic conditions for radiologists and physicians reviewing conventional X-ray films.
X-ray View Box Specification

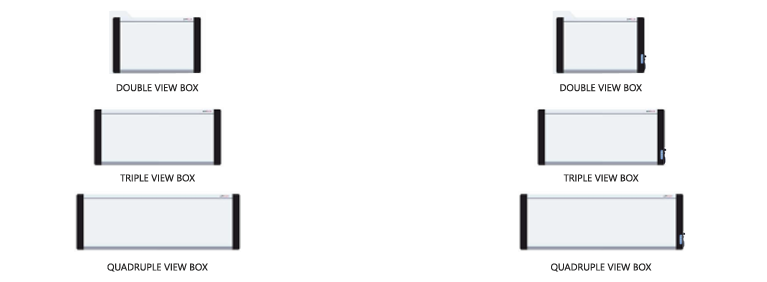

| Parameter | Single Screen | Dual Screen | Triple Screen | Quadruple Screen |
|---|---|---|---|---|
|

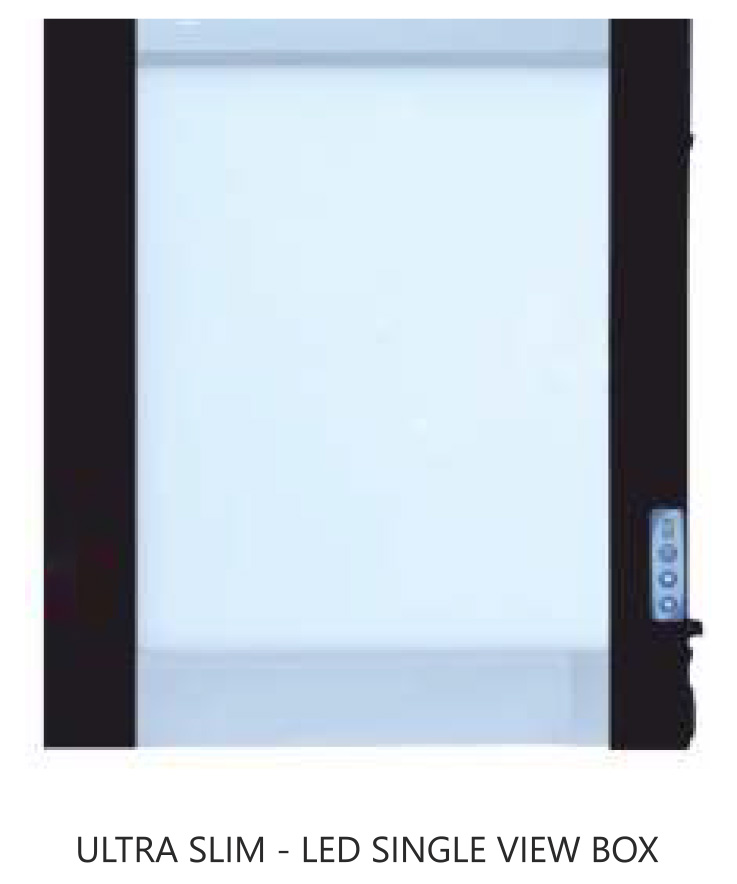

LED Single View Box ULTRA SLIM-LED Single View Box |
500 × 512 × 45 mm 470 × 545 × 24 mm |
850 × 512 × 45 mm 830 × 545 × 24 mm |
1200 × 512 × 45 mm 1190 × 545 × 24 mm |
1570 × 512 × 45 mm 1570 × 512 × 45 mm |
| Viewing Area (W×H) | 14" × 17" | 28" × 17" | 42" × 17" | 56" × 17" |
| Light Source | LED | LED | LED | LED |
| Lamp Life | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Net Weight (kg) LED Single View Box |
3.0 | 5.5 | 8.0 | 10.0 |
| Net Weight (kg) ULTRA SLIM-LED Single View Box |
4.0 | 7.5 | 10.5 | 14.0 |
Salient Features
- Energy Efficiency: LED’s are highly efficient. Energy savings range from 80% to 90%.
- Long Life: LED’s are projected to produce a long service life of about 100,000 hours.
- No UV Emissions / Little Infrared: LED’s produce no UV radiation and little heat, making them ideal for X-ray film view boxes and harmless for the eyes.
- Lights Instantly
- Unparalleled latest LED technology
- Low-voltage power supply (increased safety)
- Digital Dimmer Technology
- Over 95% uniform light distribution across the screen Film-activated switch / film sensor – automatic shutdown if no film is inside (*Optional)
- Uses 7000K–15000K white and light-blue color temperature, ideally suitable for viewing X-Ray, CT, and MRI films.
Comparison between premium & Economic Versions
| Specification | Single LED View Box | Ultra Slim - Single LED View Box |
|---|---|---|
| Colour Temperature | >12000K | >14000K |
| Brightness | 6000 cd/m² | 7500 cd/m² |
| LED's | LED Strip | Light Guided Panel |
| LUX | >6000 | >7500 |
| Power Supply | 12W / 24W / 36W / 48W | 12W / 24W / 36W / 48W |
| Size Availability | Single / Double / Triple / Quadruple | Single / Double / Triple / Quadruple |
| Suitable for |
Radiologists (CT/MRI), Neurologists, Physio |
Radiologists (CT/MRI), Neurologists, Physio |
| Power Supply Type | Inbuilt | Inbuilt |
| Model |
AM-View 1, AM-View 2, AM-View 3, AM-View 4 |
AM-View 1, AM-View 2, AM-View 3, AM-View 4 |
